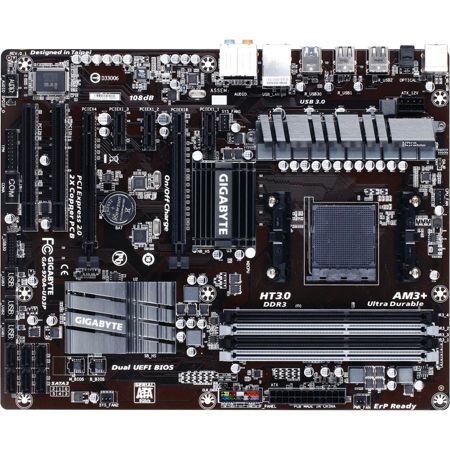

Gigabyte Ultra Durable 4 GA-970A-UD3P Desktop Motherboard - AMD 970 Chipset - Socket AM3+ Item # 4049685
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
4049685
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The 970A-UD3P motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the Gigabyte 333 onboard acceleration technologies. Featuring the USB 3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5 Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA revision 3.0 solution via AMD SB950 chipset, Gigabyte AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices.
Product Details
| Item # | 4049685 |
| Manufacturer # | TQ4321 |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 1 |
| Total Number of Onboard USB Ports | 8 |
| Power Supply Supported | ATX12V |
| Multi GPU Supported | CrossFireX |
| RAID Levels | 0; 1; 5; 1+0; JBOD |
| Memory Speed Supported | 2 GHz (O.C.); 1.87 GHz; 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Processor Supported | Athlon; Sempron; Phenom; Opteron; FX |
| height | 3in. |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 10 |
| Number of PCI Express x1 Slots | 3 |
| Onboard Audio Header | Yes |
| width | 12in. |
| Product Line | Ultra Durable 4 |
| Number of Memory Slots | 4 |
| Sound Controller Model | VT2021 |
| Audio Line In | Yes |
| depth | 9.6" |
| Product Name | Ultra Durable 4 GA-970A-UD3P (rev. 1.0) Desktop Motherboard |
| Number of PCI Express x16 Slots | 2 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 5 |
| HyperTransport Speed | 4.80 GT/s |
| manufacturer | GIGABYTE Technology, Inc |
| 64-bit Processing | Yes |
| Number of S/PDIF Out Ports | 1 |
| Audio Line Out | Yes |
| weight | 3.42 lb |
| RAID Supported | Yes |
| brand name | Gigabyte |
| Maximum Memory | 32 GB |
| controller type | Serial ATA/600 |
| Audio Channels | 7.1 |
| Number of Onboard USB 2.0 Ports | 6 |
| Gigabit Ethernet | Yes |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Number of USB 2.0 Ports | 8 |
| Onboard Serial Header | Yes |
| PS/2 Port | Yes |
| Memory Standard | DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Form Factor | DIMM |
| Number of Total Expansion Slots | 7 |
| Processor Socket | Socket AM3+ |
| Sound Controller Manufacturer | VIA |
| Chipset Model | 970 |
| Chipset Manufacturer | AMD |
| form factor | ATX |
| Memory Technology | DDR3 SDRAM |
| PCI Express Standard | PCI Express 2.0 |
| Number of Onboard USB 3.0 Ports | 2 |
| warranty length | 3-year limited |
| model name | GA-970A-UD3P |
| Onboard S/PDIF Header | Yes |
| Number of PCI Slots | 2 |
| Show More ▾ |
